Video Measuring Software OMS


The flexible, easy-to-learn measuring software for two dimensional measurements of primary samples and small batches by either hand-operated or motorized-operated measuring microscopes, for use in laboratories or production areas.

OMS is available in english or german language.

measuring in the video image by mouseclick easy manual measuring by mousclick directly in the video image

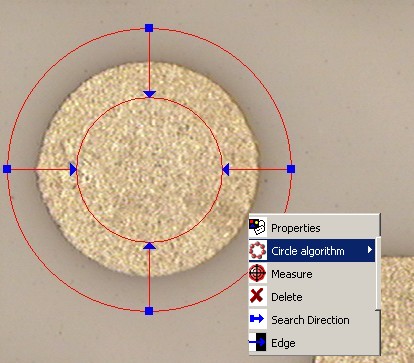

automatic measuring functions
intuitively usable tools are available for the automatic
  edge detection of point, line, circle and circle sector
example of a manual measuring function flexible on-screen manual measuring functions
scaled overlay masks different scaled overlay masks for direct shape and
  dimension comparison of products and prototype samples

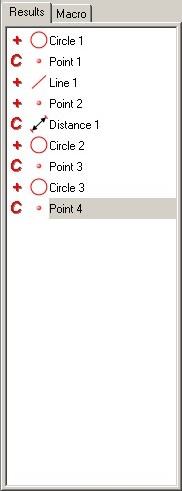

list of already measured elements list of already measured elements for further combinations
graphical part view graphical part view for overview or element selection
  (with DXF export)
multiple fields of view are stitched together into
  a large complete image

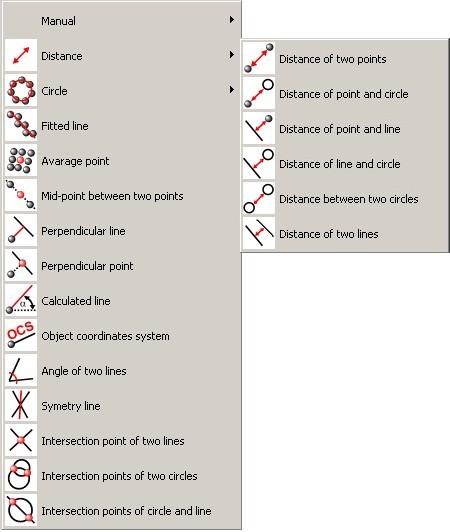

various functions to combine geometrical elements various functions to combine already measured
  geometrical elements
customizable protocol header customizable protocol header and logo

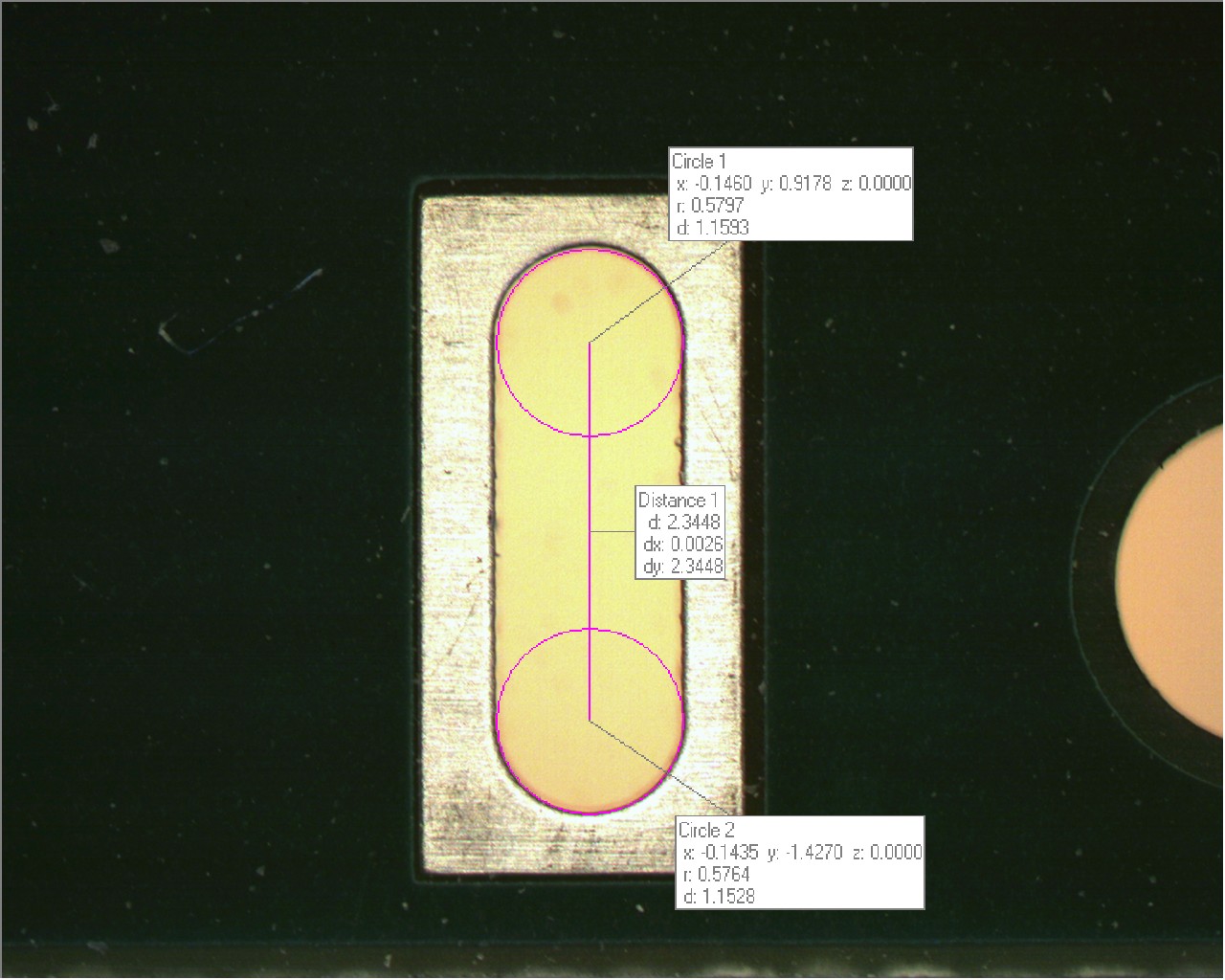

measuring results overlay for documentation video image with measuring results overlay for documentation
measuring report with video image or part view • measuring report with video image or part view (with PDF export)

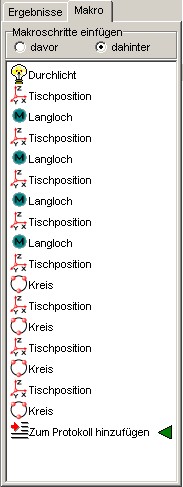

automatic measuring program with subroutine automatic measuring program by teach-in (with subroutine)
 automatischer Messablauf mit Unterprogramm
automatischer Messablauf mit Unterprogramm
 Multifocus image stacking with 3D-reconstruction
   and cross-section measurements
