Custom Solutions

Custom Solutions

We are developing custom systems for various applications upon request.

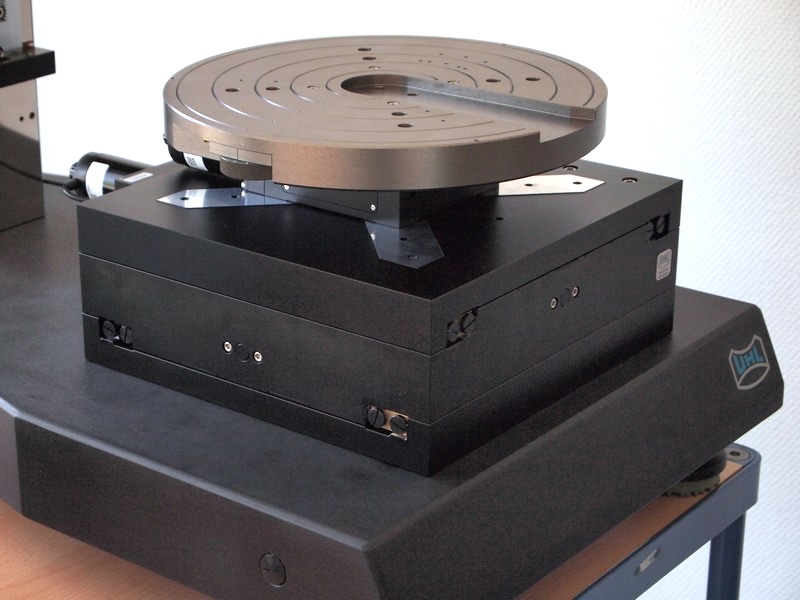

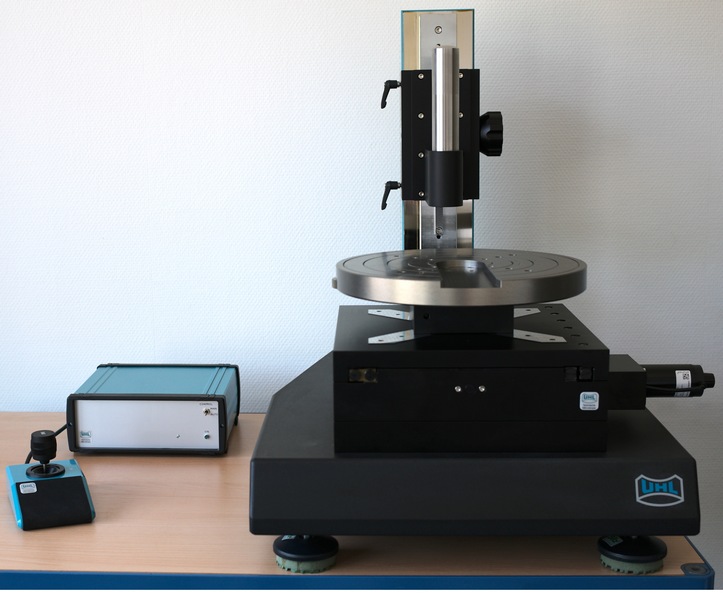

Custom systems including for example special lenses, tube assemblies of our component system, special cross(xy) or rotary stages, lift tables, single or multiple axis stands, precision hole punches or micro assembly systems.

Our own design, manufacturing, assembly and service facilities enables us to provide you a complete system from a single supplier.

Here are some examples of customized solutions:




Spinneret Inspection Microscopes

Spinneret Inspection Microscope PR7Manual, semi- or fully-automatic microscopes for spinneret inspection "Made in Germany" since more than 40 years.

high mechanical stability for long term inspection- and, due to that, spinning-quality.

• excellent optical image quality for fatigue-proof operation

• half- or fully-automatic inspection in combination with motorized axes improves the efficency and reduces operator influence

• by using the UHL component system, the Inspection Microscopes can be easily customized and provide simplified  maintenance

• the PM4, PR5, PR7 and PR8 Inspection Microscopes are providing a direct, alternating view of capillary and counterbore without moving the spinneret

several instrument types provide the fast inspection during stage movement with a large field of view with a speed of up to 2300 capillaries per minute

inspection through the entire capillary length during the focusing travel Kapillar-Tiefeninspektion

model overview:

 Model  Operation    Inspection range   typical application   Video

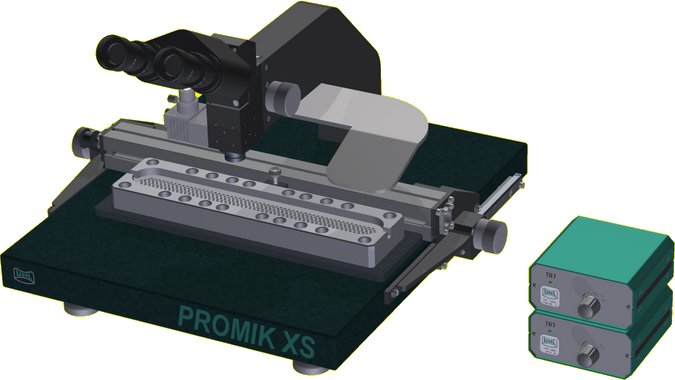

PR2
Inspection Microscope PR2
• manual
• binocular
• video (optional)
 350 x 150 mm

yarn, filament

round- and rectangular
spinnerets

PR2 Spinneret Inspection Microscope video
    PR3
Inspection Microscope PR3
• manual
• binocular
• video (optional)
 200 x 100 mm

yarn, filament

round- and rectangular
spinnerets


    PR5
Inspection Microscope PR5
• manual
• binocular and video
• counterbore view
 300 x 150 mm

yarn, filament

round- and rectangular
spinnerets


  PR5-RH
Inspection Microscope PR5-RH
• manual
• dual-video
• counterbore view
 Ø 210 - 410 mm

staple fiber

round spinnerets


  PR5-RMI
Inspection Microscope PR5-RMI
• automatic
• video with software
   and image analysis
• counterbore view
 Ø 210 - 410 mm

staple fiber

round spinnerets


    PR4
Inspection Microscope PR4
• automatic
• video with software
   and image analysis
 250 x 200 mm

yarn, filament

round- and rectangular
spinnerets

PR4 Spinneret Inspection Microscope video
    PR4-S
Inspection Microscope PR4-S
• automatic
• video with software
   and image analysis
 maximum
 pitch circle-Ø 90

filament, carbon fiber

spheric round spinnerets

PR4-S Spinneret Inspection Microscope video

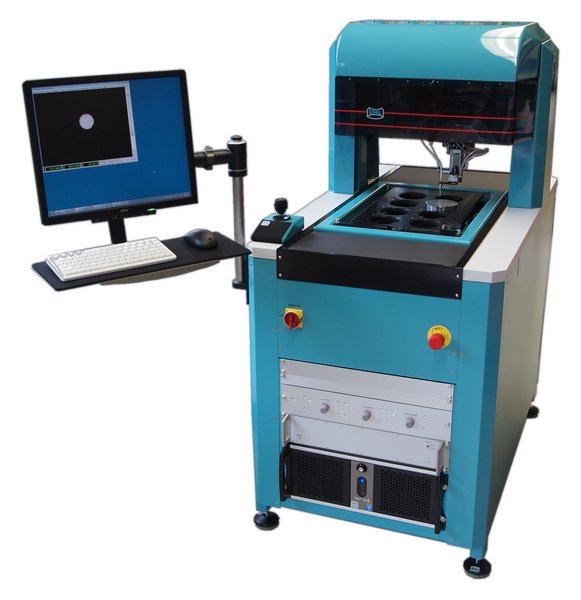

    PR7
Inspection Microscope PR7
• automatic
• video with software
   and image analysis
• counterbore view
  (optional)
 250 x 480 mm

yarn, filament,
staple fiber, non-woven

round- and rectangular
spinnerets

PR7 Spinneret Inspection Microscope video
    PR8
Inspection Microscope PR8
• automatic
• video with software
   and image analysis
• counterbore view
 1110 x 468

yarn, filament,
staple fiber, non-woven

round- and rectangular
spinnerets

PR8 Spinneret Inspection Microscope video
    PM4
Inspection Microscope PM4
• automatic
• video with software
   and image analysis
• counterbore view
 1250-7700
  x 250 mm

non-woven, meltblown

rectangular spinnerets

PM4 Spinneret Inspection Microscope video



Spinneret Inspection Microscopes brochureSpinneret Inspection Microscopes brochure download...


Microscopes for wafer inspection

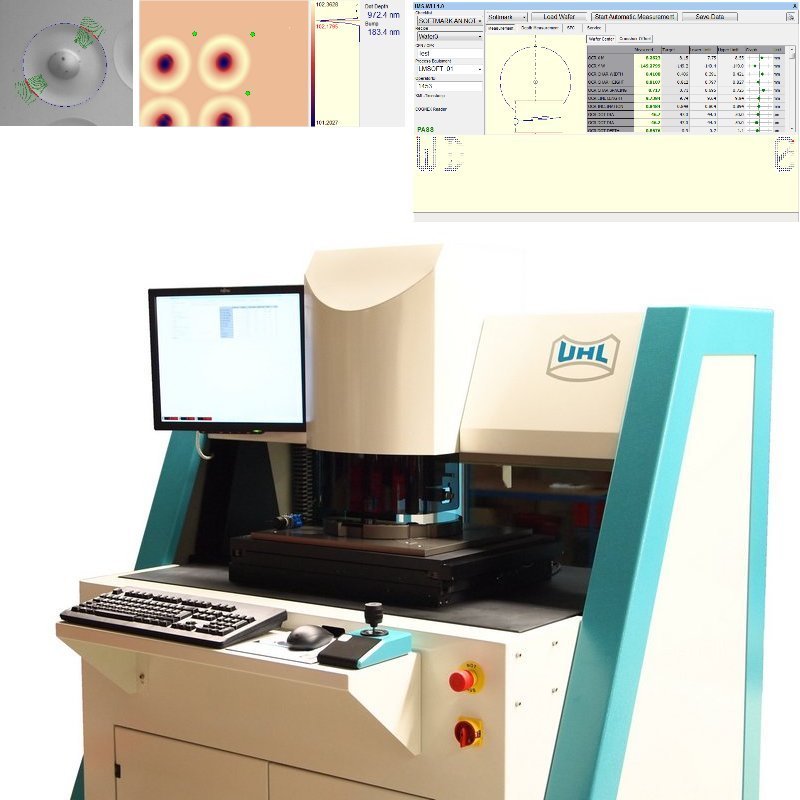

Customized microscope for laser mark measurement on wafer

Customized microscope for laser mark measurement on wafer     Customized microscope for laser mark measurement on wafer
depth measurement by autofocus   depth measurement by interference
   objective and software analysis
Customized microscope for laser mark measurement on wafer
• fully automatic measurement
   of depth, size and position

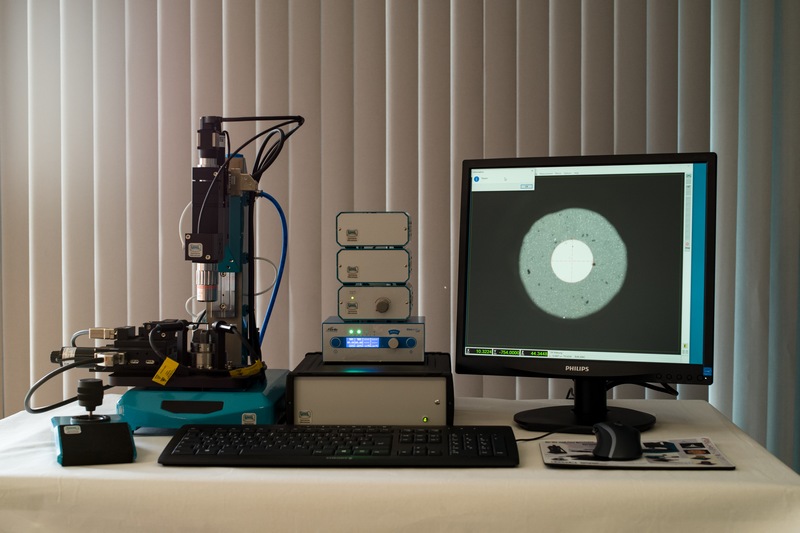

Microassembly devices

Microassembly device      Microassembly device

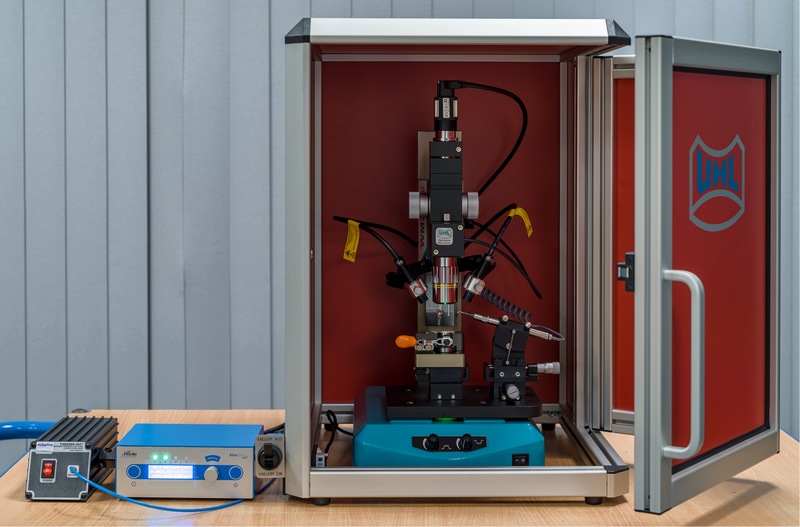

Microassembly device
for assembling laser diodes
  Microassembly device with dispenser
to put up glue- or soldering-dots

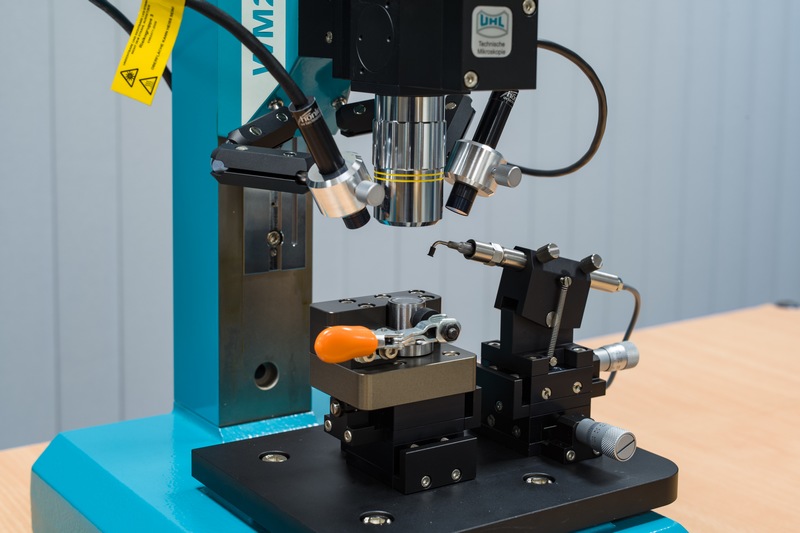

Microassembly device   Microassembly device
Microassembly device   Microassembly device for assembly
of laser diode lenses
